DataChart® DC1250 2 Channel Paperless Recorder

A maximum sample storage rate of 100 samples per second can be set for both channels allowing for capture of short duration process signals anomalies. CompactFlash™ cards up to 2 Gigabyte size can be used allowing many data points to be stored over long periods of time.

With intuitive operation, flexible input configuration and large memory capability, the DataChart 1250 is a powerful, compact digital recorder.


Ethernet Communication
A rear accessible RJ45 Ethernet port is available. With this option the DC1250 can be connected to any Standard 10/100BaseT Network. Access and transfer data stored on the compact flash card. View real-time trended data and remotely control and configure recorder with Navigator software. The built in web-browser allows real time data viewing with only an internet browser.

A Clear View
The DC1250 has a highly reflective twisted nematic LCD display with a bright white LED backlight. The graphic user interface can be configured to display real time data in digital or trend format. Configuring the 1250 is an intuitive process which uses an easy to follow menu system.

Versatile Power
The DC1250 is supplied with a universal wall transformer power supply (North American plug) that can operate from 100 to 240Vac 50/60Hz. An optional transformer with an interchangeable plug set is available.

An isolated input power of 12-24Vdc is also available for use with instrument power supplies or external batteries. The DC1250’s real time clock and internal RAM have a battery back-up to preserve data in the event of a power loss.

If losing data during a power outage is a concern, the user can add the rechargeable battery pack option. With the battery pack option installed, the DC1250 automatically keeps the rechargeable NiMH batteries charged to capacity. In the event of a power loss, the DC1250 automatically switches over to internal battery power. All functions continue to operate as normal for up to 8 hours! This option is also great for using the DC1250 in areas where no AC or DC power is available.

USB Communication
A front accessible USB port is available. Access and transfer data stored on the compact flash card. View real-time trended data and remotely control and configure recorder with Navigator software. USB port cannot be ordered with Ethernet option.


Input Power: Standard


9 Vdc +/- 0.5Vdc @ 5VA (depends on external loads) provided by extrnal AC wall tranformer (provided)., non-isolated, 100-240Vac 50/60Hz
Input impedance:
>100k Ohms


Isolated 12-24 Vdc input power available (not compatible with internal bater pack option below).
Measurement Rate:
 Up to 100 samples/sec per channel.


Internal Batter pack provides uninterruped operation and controlled shutdown during blackout. 6Vdc, 2400mAH NiMH - Backup Time: 8 hours typical (depends on external load.
Math Function:
 Y=mx + b; average, hi peak, low peak.
2 outputs 5Vdc @ 50mA to power external sensors.
 Compact Flash to 2GB
Number of Channels:
2 universal, user selectable.
 LCD Graphics, 160 x 80 pixels, black FSTN with white LED backlight. User controlled backlight level and contrast adjust (electronic).
300V AC/DC channel input to chassis ground

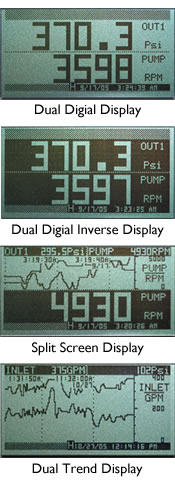

Display Modes:
 Trending (horizonal), Large dual digital radout, mixed mode.
DC Input:
0-250mV; 0-1.25V; 0-2.5V, 0-5V; 0-12.5V; 0-25V
User Interface:
 5 button keypad (dual function buttons).
  Accuracy: 0.1% of reading
Resolution: 0.025% of full scale
 Auto leapyear and daylight savings adjustment. Internal battery backup.
0-20mA; 4-20mA; 0-50mA; 10-50mA
Relay Output:
 Two alrm outputs: 30V 0.5A Form A relays.
  Accuracy: 0.1% of reading excluding 250 ohm external shunt (required)
Opto-isolated Input:
 One input, 5 to 12Vc activation @ 10mA typical.
  Resolution: 0-25% of full scale.
 Internal beeper (multiple tones).
Accuracy: 0.3% of full scale (typical). Ambient Temperature Sensor Accuracy: +/-1.5°C (see datasheet for full specs.)
 Front panel: 96mm (1/4 DIN) x 152mm (3.78 x 3.78 x 6 inches).
Accuracy: 0.3% of full scale (typical)
Resolution: 0.1°C
Internal Current source: 1mA (see datasheet for full specs)
 Indoor Use Only
Installation Category II
per IEC 664
Pollution Degree Level II per IEC61010-1
Temperature: -10°C to 50°C operating per IEC 61010-1
Humidity: Maximum relative humidity 80% for temperature up to 31°C, decreasing linearly to 50% relative to humidity at 40°C.
Frequency Input (Hz) Range:
0-10,000 Hz/ 0-600,000 RPM
 USB: Front panel USB 2.0 slave port for data and remote real-time display when using Navigator software.
Speed Input (RPM:
Accuracy: Freq: +/-1 Hx; RPM +/1 RPM below 9,999 RPM
Input: Low <1.0Vdc; High >3.0 <12.0Vdc
Pulse Width: 10 microsecond minimum.
   Ethernet: Real time data display, historic data transfer, remote control and recorder configuration when using Navigator Software. Built in web server displays current measured values.


Please call 414-218.8088 to order accessories listed below.

Nema 4x Enclosure Option

The NEMA4X kit consists of a heavy duty molded plastic NEMA4X enclosure with a lockable hinged door and the SPC1250 splash proof cover. The door of the enclosure is die cut to accept the DataChart1250. When using this kit, the DC1250 can be mounted outdoors or in harsh wet environments. The kit also includes stainless steel mounting feet for wall mounting. The enclosure can be easily drilled to accept conduit or watertight gland fittings for input signal and power wires.

Measure RPM

The DC1250 can be used in conjunction with many of Monarch’s speed measurement sensors. Power for sensors is provided from the DC1250 rear terminals. Measure, display and record RPM ranges from 0 - 600,000. Choose the sensor best suited for your application or take your existing signal (0 - 5V TTL) directly into the 1250.

DataChart® Navigator software makes reviewing, printing and exporting data easier than ever. Simply start the program, double click the data file and Navigator does the rest. Your data file is displayed in one graphic window complete with the scales as programmed in the DC1250 as well as Date and time stamps. You can expand, compress or use the box zoom to display specific areas of data as needed. The print preview feature allows review prior to printing.

Exporting data is as simple as clicking the Excel™ Icon in the Data table export window. Navigator automatically converts the historic data, starts up Excel™ and loads your data into an organized spreadsheet.

Download a DEMO version of Navigator click here
Minimum system Requirements: PC running Windows® 2000 or XP

Download Latest Version of DC1250 Firmware (rev 1.1, June 2009) click here
See instruction manual for instructions on installing new firmware

Ordering Information
For the Data Chart 1250, 2 Channel Paperless Recording System

$599.00 Basic System (optionals are listed below)
Basic System comes with AC Adapter 100-240,Navigator Lite Software: View data in table format and export only
Please call 414-218.8088 to place an order
Item No.
2 Channel Digital Recorder with standard 100-240 VAC wall adapter with North American plug
Add $15.00
Universal AC power Adaptor with interchangeable Plug Set (instead of –S in Part Number)
Add $25.00
DC Input power 12-24 VDC (instead of –S in Part Number)
Add $15.00
Re-chargeable NiMH Battery Pack for Backup/Operation (Not available with Option-D)
Add $100.00
Navigator Full: Graphics and communications, Windows compatible software for graphic analysis, printing, transfer and exporting
Add $99.00
USB 2.0 Front Panel Port
Add $50.00
250 Ohm Precision Resistor for current inputs. 0.1% 0.5 watt
NEMA4X KIT NEMA4X Kit for DC1250 Add$189.00
256 Megabyte CompactFlash™ Memory Card
Add $40.00
512 Megabyte CompactFlash™ Memory Card
Add $60.00
1024 Megabyte CompactFlash™ Memory Card
Add $75.00
2084 Megabyte CompactFlash™ Memory Card
Add $100.00
Temperature/Humidity Sensor with 8 foot cable
Add $99.00
Remote Optical Sensor with 8 foot cable, mounting bracket and 12 inches of reflective tape
Add $140.00
Magnetic Trigger Sensor/Amplifier with 8 foot cable
Add $210.00
Infrared Sensor with 8 foot cable tinned wires and mounting bracket
Add $200.00
