For simple, quick alignment of belt drives.
Intrinsically safe and approved for use in potentially explosive environments.

The tool is fitted in a few seconds, and the laser line projected on the targets clearly
shows how you need to adjust the machines.

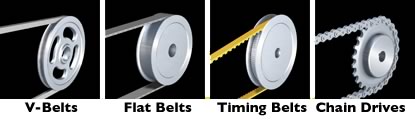

Suitable for most types of drive, such as V-belt, timing belt, flat belt and chain drives.
Can also be used on non-magnetic pulleys.

Typical applications:
Most belt/chain drives.

Approved in accordance with:  EEx ib IIC T3 Ta: 10–50 °C / Ex ib IIC T3 Ta: 10–50 °C
ATEX code:  II 2 G
EX certificate number:  Nemko 06ATEX1235X
IECEx certificate number:  IECEx NEM 06.0003X
