CMCP-1200 Industrial Accelerometer with 5015 Connector

Vibration Monitoring Products from STI



Sales Technology, Inc. (STI) specializes in Vibration Monitoring and is a manufacturer of comprehensive Condition Monitoring and Machine Protection Solutions, and has been producing quality vibration sensors and monitoring products since 1989.

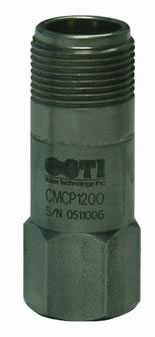

CMCP-1200 Industrial Accelerometer with 5015 Connector

The CMCP-1200 100 mv/g Accelerometer with a 2 Pin Mil Spec 5015 connector is manufactured in house to high quality standards. Each accelerometer is fully enclosed in a potted and waterproof stainless steel case. CMCP-1200 accelerometers are always in stock ready for quick delivery. Optional accelerometer extensions cables are also available and in stock. 1/4" x 28 UNF Mounting Stud included.


Features

*100 mV/g Sensitivity
* ± 10% Accuracy
* Low Cost
* Small Size Case
* 0.32 Hz to 10 KHz Frequency Range (± 3 dB)
* Waterproof

Specifications:

Dynamic Performance

English

SI

Sensitivity (?10%)

100 mV/g

10.2 mV/(m/s2)

Measurement Range

?50 g

?490 m/s2

Frequency Range: (?3 dB)

0.32 to 10 kHz

0.32 ? 10 kHz

Mounted Resonant Frequency

22 kHz

22 kHz

Amplitude Linearity

?1%

?1%

Transverse Sensitivity

?7%

?7%

Environmental

English

SI

Shock Limit

5,000 g pk

49k m/s2 pk

Temperature Range

-65 to +185? F

-54 to 85? C



Electrical

English

SI

Settling Time

?2 sec

?2 sec

Excitation Voltage

18 to 30 VDC

18 to 30 VDC

Excitation Constant Current

2 to 20 mA

2 to 20 mA

Output Impedance

<150 ohms

<150 ohms

Output Bias Voltage

8 to 12 VDC

8 to 12 VDC

Electrical Case Isolation

>108 ohms

>108 ohms

Electrical Protection

RFI/ESD

RFI/ESD

Spectral Noise





(10 Hz)

?g /Hz

78.5 (mm/s?) / Hz

(100 Hz)

?g /Hz

49.1 (mm/s?) / Hz

(1 kHz)

?g /Hz

39.2 (mm/s?) / Hz

Mechanical

English

SI

Size

0.6 x 1.75?

16.2 x 44.67 mm

Weight

2.5 oz

70.7 g

Mounting Thread

1/4-28 UNF-2B

1/4-28 UNF-2B

Mounting Torque

2 to 5 ft-lb

2.7 to 6.8 N-m

Sensing Element

Ceramic/Shear

Ceramic/Shear

Case Material

Stainless Steel

Stainless Steel

Sealing

Potted

Potted

Wrench Flats

5/8?

5/8?
